Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE
Model Number: U90
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/month
Memory: |
ROM/RAM: 128Mb Nor Flash/512Mb RAM |
USIM Slot: |
1.8V/3.0V USIM 2FF |
Wireless Access Technology: |
TD-LTE/FDD/TDD/WCDMA |
Europe & Africa Bands: |
FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8 |
Data Rate: |
LTE FDD：Max 150Mbps（DL）/ Max 50Mbps（UL）； LTE TDD：Max 130Mbps（DL）/ Min 35Mbps（UL）； WCDMA：Max 21Mbps（DL）/ Max 5.76Mbps（UL） |
Standard: |
IEEE 802.11b/g/n |
Frequency: |
2.4G |
Memory: |
ROM/RAM: 128Mb Nor Flash/512Mb RAM |
USIM Slot: |
1.8V/3.0V USIM 2FF |
Wireless Access Technology: |
TD-LTE/FDD/TDD/WCDMA |
Europe & Africa Bands: |
FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8 |
Data Rate: |
LTE FDD：Max 150Mbps（DL）/ Max 50Mbps（UL）； LTE TDD：Max 130Mbps（DL）/ Min 35Mbps（UL）； WCDMA：Max 21Mbps（DL）/ Max 5.76Mbps（UL） |
Standard: |
IEEE 802.11b/g/n |
Frequency: |
2.4G |

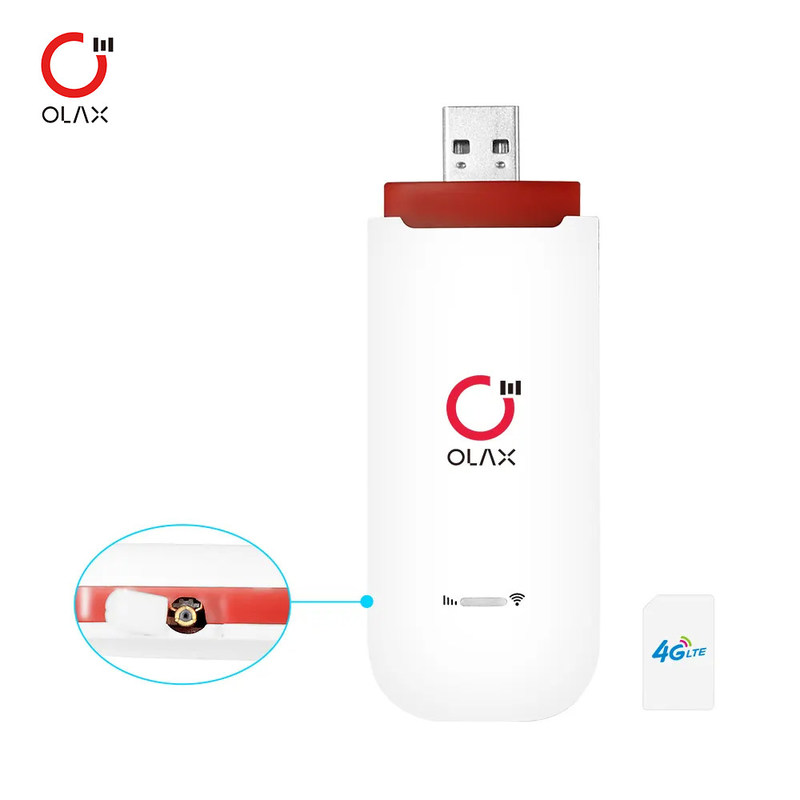

OLAX U90
4G LTE USB Dongle(European Version)
Introducing the OLAX U90, a pioneering Wi-Fi monitoring dongle that transforms the way you oversee your digital environment.
This compact device is designed to provide you with the ultimate in wireless surveillance, ensuring you're always in control.
- **Wireless Connectivity:**
The OLAX U90 offers seamless wireless connectivity, allowing you to monitor your network without the hassle of cords or complicated setups.
- **High-Definition Streaming:**
Experience high-definition video streaming, ensuring every detail is captured with clarity for reliable monitoring.
- **Plug-and-Play Design:**
Simply plug the dongle into your device and start monitoring instantly.
The U90's user-friendly design minimizes the learning curve for a smooth user experience.
- **Extended Range:**
With an extended range, the U90 ensures comprehensive coverage, eliminating blind spots in your surveillance area.
- **Robust Security Features:**
Protect your network with the U90's advanced security features, safeguarding your data and privacy.
- **Multi-Device Compatibility:**
Compatible with a wide range of devices, the U90 is a versatile solution for various monitoring needs.
1. Introduction
4G LTE USB Wi-Fi Dongle U90 is a new the new USB WIFI Dongle which could achieve high speed 4G connection. It is not only a modem or a router, it is a real UFI, You can use it in cars via standard usb port,and outside with powerbank via standard usb port.
Internet connection sharing, up to 10 users can access the Wi-Fi network at the same time. no need install software (Wi-Fi Mode),Work with external power supply, no limited working time. it can charger by computer USB port/ Power Bank / Car USB charger/Power supply
U90 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network. Wireless devices including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.
2. Basic Specifications
| Item | Description |
| CPU | ZX297520V3T |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 128Mb Nor Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| USB Port | Standard USB 2.0×1 for Power supply |
| LED Indicators |
WLAN LED×1(Green) LTE Connection Status LED×2(Red/Blue) |
| Dimensions | 96mm (H) x 34mm (W) x 12mm (D) |
| Weight | About 38g |
3. 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/TDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands(Area) |
Europe & Africa FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8
Asia: FDD:B1/B3/B5/B8/ TDD:B40 WCDMA:B1/B8 China: FDD:B1/B3/B5/B8/ TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 |
| Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power |
LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
4. WiFi Specifications
| Item | Description |
| Standard | IEEE 802.11b/g/n |
|
Channel Bandwidth |
20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps 802. 11g:54Mbps 802. 11n:150Mbps |
| Modulation | DSSS/CCK,OFDM |
|
Receive Sensitivity |
-82dBm in 802.11b -72dBm in 802. 11g -66dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 15dBm in 802.11g 14dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2dBi |
| Active User | Max 8 |
5. SW Specifications
| Item | Description |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management |
PIN Management SIM Lock Support PIN/PUK certification |
| Network Connection Management |
Automatic network mode setting Manual network mode setting Automatic dial-up connection Manual dial-up connection Automatic reconnection function Support roaming dialing Manual disconnect WEBUI display information |
| WLAN |
Configure Network Name(SSID), Password Wi-Fi basic settings Wi-Fi security settings WPS setting Wi-Fi coverage settings Wi-Fi black and white list function |
| Firewall |
IP/MAC/URL Filter UPnP settings DMZ settings |
| Statistics |
LTE Status Connection Time System Up Time Device Status DHCP Client List Wi-Fi Station List LTE Status Firewall Status |
| Maintenance |
Date & Time setting DHCP settings Reboot Restore factory settings Firmware upgrade locally/OTA (over the air) |
| SNTP |
SNTP function SNTP supports daylight saving time |
6. Environmental Specifications
| Item | Description |
|
OperatingTemperature |
-10℃ ~ 50℃ |
|
StorageTemperature |
-20℃ ~ 60℃ |
|
Operating Humidity |
5% ~ 95% |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
Note:European and American versions available.
