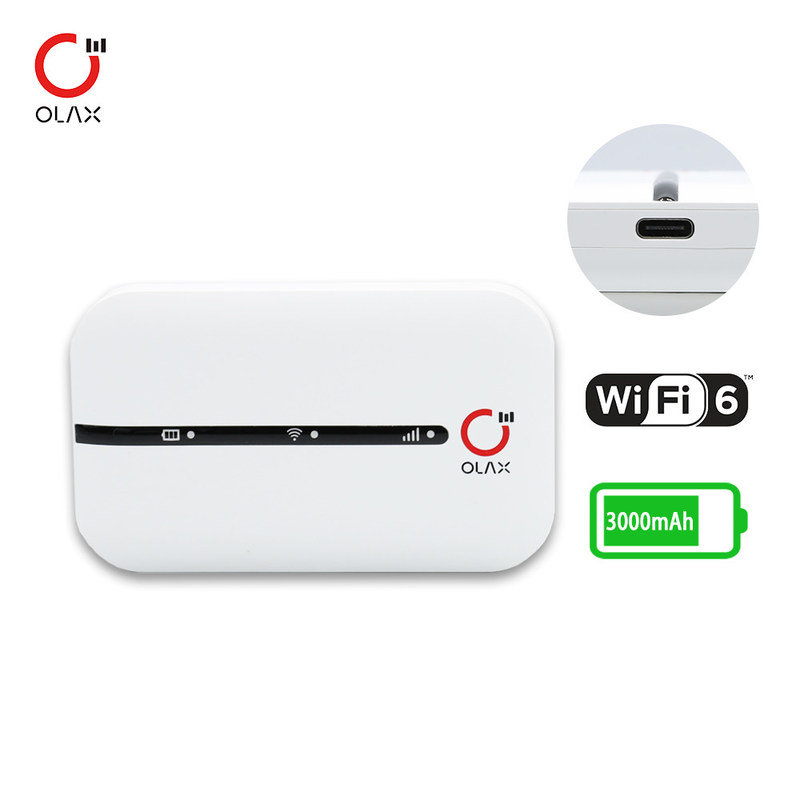

OLAX MT10
4G LTE Mobile WIFI
Features:
Supports LTE TDD / FDD / UMTS / GSM /.
Streamlined in shape, the MT10 incorporates LTE FDD technology while remaining compatible with UMTS / GSM / CDMA networks, automatically switching between different networks to ensure best internet connectivity.
Advantages:
◆With 3000 mAh battery,long use time
◆Have SIM card, memory card slot
◆Frequency band lock: B1/3/5/7/8/20/38/39/40/41
◆Disply:LED
◆Support multiple languages such as English/Spanish/French/Vietnamese and Chinese,can be switched freely.
◆4G LTE up to 150Mbps(DL)/50Mbps(UL),Super stability
1. Introduction
MT10 a new 4G mobile hotspot which could achieve high speed 4G connection.
MT10 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.
2. Basic Specifications
| Item | Description |
| CPU | ZX297520V3E |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 1Gb NAND Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 3FF |
| Interface |
MicroUSB interface Standard USIM interface MicroSD interface |
| Power Button |
Hold on 3s to power on/off Short press to wake up /Light the LED |
| T CARD | Upward compatible to 32 GB |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| LCD Indicators |
color full LCD display : operator name , signal status, battery status, wifi users. email alerts. |
| Battery | 3000Mah lithium Battery |
| Dimensions | 97*58.5*18.9mm |
| Weight | About 100g |
3. 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands |
MT10(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41(120M) WCDMA:B1/B2/B5/B8 MT10-A(America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41(120M) WCDMA:B1/B2/B4/B5/B8 |
| Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power |
LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
4. WiFi Specifications
| Item | Description |
| Standard | IEEE 802.11b/g/n |
|
Channel Bandwidth |
20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps 802. 11g:54Mbps 802. 11n:150Mbps |
| Modulation | DSSS/CCK,OFDM |
|
Receive Sensitivity |
-82dBm in 802.11b -72dBm in 802. 11g -62dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 15dBm in 802. 11g 14dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
| Active User | Max 8 |
5. SW Specifications
| Item | Description |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management |
PIN Management SIM Lock Support PIN/PUK certification |
| Network Connection Management |
Automatic network mode setting Manual network mode setting Automatic dial-up connection Manual dial-up connection Automatic reconnection function Support roaming dialing Manual disconnect WEBUI display information |
| LTE Scan Mode |
Full band scan Frequency Lock PCI Lock |
| WLAN |
Configure Network Name(SSID), Password Support Multi SSID Wi-Fi basic settings Wi-Fi security settings WPS setting Support AP/Station mode Wi-Fi QR code Wi-Fi coverage settings Wi-Fi black and white list function |
| SMS |
Send, Receive, Read, Edit, Delete message Message full processing Concurrency with data services Show the number of stored messages Message status report support |
| Firewall |
IP/MAC/URL Filter UPnP settings DMZ settings |
| Statistics |
LTE Status Connection Time System Up Time Device Status DHCP Client List Wi-Fi Station List LTE Status Firewall Status |
| Maintenance |
Date & Time setting DHCP settings Reboot Restore factory settings Firmware upgrade locally/ FOTA |
| SNTP |
SNTP function SNTP supports daylight saving time |
| Charge | Shut down charging Power on and charge |
6. Environmental Specifications
| Item | Description |
|
Operating Temperature |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
| Operating Humidity | 5% ~ 95% |
| Standby time | 300 hours(LTE connected and WIFI off) |
| Working time | 6~8 hours |
