Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: AX5 PRO
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation of prices
Packaging Details: Product size: 20*14.2*8.8 cm Packing size: 30*43*45cm Weight:0.7kg Packing weight: 14KG/CTN Carton: 20pcs/CTN
Delivery Time: 28-45 workdays
Payment Terms: T/T
Supply Ability: 10000pcs/month
Material: |
ABS |
Color: |
Black |
Chipset: |
ZX297520V3E |
LTE Standard: |
LTE CAT4 150 Mbps(DL)/50 Mbps(UL) |
Wi-Fi Concurrent Users: |
32 Users |
Battery Capacity: |
With 2000mah Battery Or Without Battery Version |
Material: |
ABS |
Color: |
Black |
Chipset: |
ZX297520V3E |
LTE Standard: |
LTE CAT4 150 Mbps(DL)/50 Mbps(UL) |
Wi-Fi Concurrent Users: |
32 Users |
Battery Capacity: |
With 2000mah Battery Or Without Battery Version |

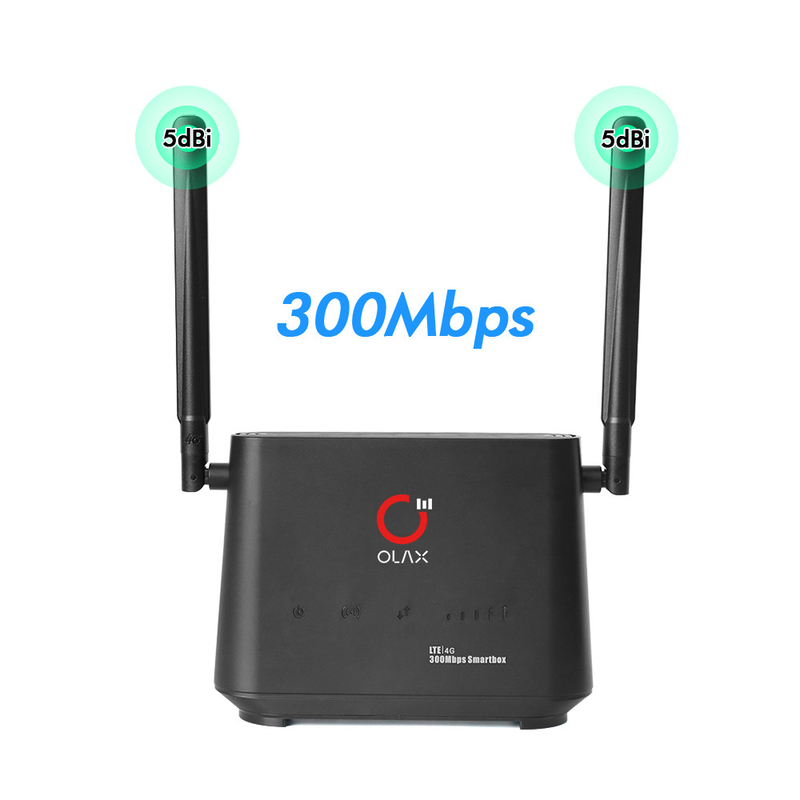

OLAX AX5 Pro 4g Router SIM WiFi Support Connect Cctv Camera 4 LAN Ports
The description of product
Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
In the search box, enter the country and click on the search, you can see the band used for the operator
OLAX AX5 Pro supports the following frequency band: 1/3/5/7/8/20/28/38/40/41(BLACK VERSION) Or B2/3/4/5/7/8/13/28ab(WHITE VERSION)
Brand: OLAX
Material: All products are made with new materials and chips
Shipping Time: Delivery within 3 days for in-stock, 28-45 working days for customized products
Guarantee: support one year warranty,support online after-sales guidance, if necessary, remote computer to check
Characteristics of products:
1.Support 32 users at the same time
2.Remove anttenna
3.Performance: cat4, 150mbps, WiFi up to 300mbps, support 32 users.
4.Support Imei change
4 WAN/LAN ports
5.WiFi range 50-200 metres ( no obstacle )
WHAT IS IN PACKAGE:
4G LTE WiFi router (CPE) x 1
12V power adaptor x 1
manual book x 1
network cable x 1
Technical specifications
| Chipset | ZX297520V3E/ ZTE |
| LTE Standard | LTE CAT4 |
| 150 Mbps(DL)/50 Mbps(UL) | |
| Memory | ROM: 128MB NAND Flash |
| RAM: 64MB DDR (128MB if Voice required) | |
| Interfaces | LAN RJ45 Port (FE) * 4; |
| RJ11 Port * 1 (Optional); | |
| DC Socket; | |
| Battery Socket (Optional); | |
| SMA Interface * 2; | |
| SIM Slot * 1; | |
| USB Socket (For Manufacture); | |
| Buttons | POWER On/Off Button |
| WPS Button | |
| Wi-Fi Button | |
| RESET Button | |
| Indictors | Power/Battery |
| Wi-Fi Switch | |
| 4G/3G/2G Internet | |
| Signal Strength (5 bars) | |
| SIM | Micro SIM(3FF) |
| Support 1.8V & 3.3V | |
| Power Adaptor | AC100V~240V,50Hz~60Hz |
| DC 12V 1A | |
| Battery | Rechargeable lithium battery |
| Capacity: 7.4V/2000mAh | |
| Maximum working hours: | |
| 2 (depending on the network) | |
| Maximum standby hours: | |
| 6 (depending on the network) |
