Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE,RoHS
Model Number: MC80
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000piece/month
Max. Lan Data Rate: |
1300Mbps |
With Modem Function: |
Yes |
Wi-fi Supported Frequency: |
2.4G ＆5G |
2.4g Wi-fi Transmission Rate: |
300Mbps |
Standards And Protocols: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac |
Wi-fi Transmission Standard: |
802.11b |
Encryption Type: |
WPA2, WPA2-PSK, WPA-PSK |
Function: |
Voip, FireWall, QoS, VPN |
Frequency: |
FDD:B1/3/5/7/8/20/28ab/38/39/40/41 WCDMA/HSPA+:B1/5/8 |
Max. Lan Data Rate: |
1300Mbps |
With Modem Function: |
Yes |
Wi-fi Supported Frequency: |
2.4G ＆5G |
2.4g Wi-fi Transmission Rate: |
300Mbps |
Standards And Protocols: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac |
Wi-fi Transmission Standard: |
802.11b |
Encryption Type: |
WPA2, WPA2-PSK, WPA-PSK |
Function: |
Voip, FireWall, QoS, VPN |
Frequency: |
FDD:B1/3/5/7/8/20/28ab/38/39/40/41 WCDMA/HSPA+:B1/5/8 |

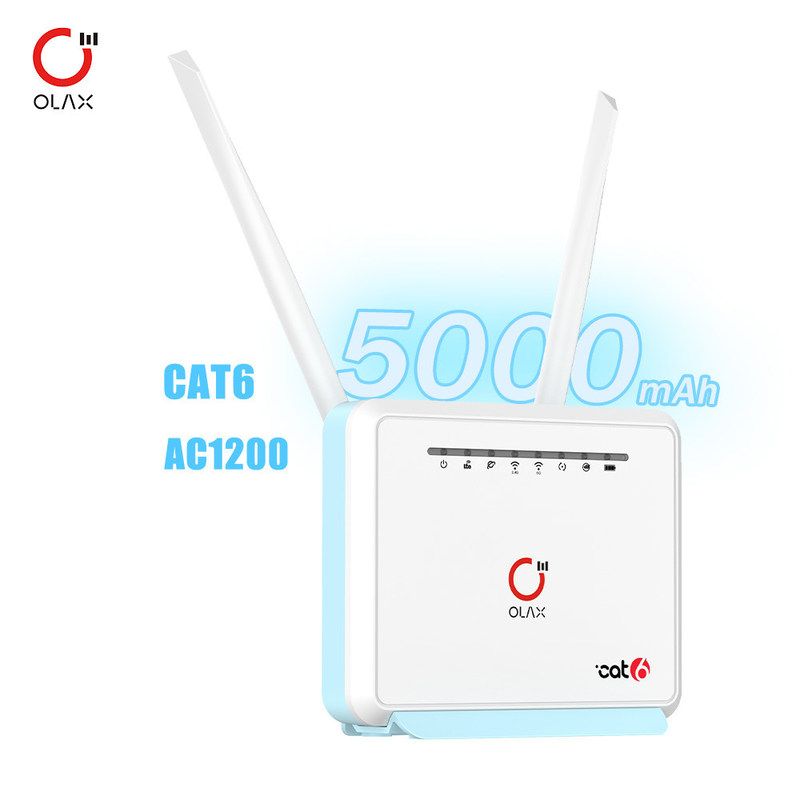

OLAX MC80
4G LTE WiFi Router
Why you choose it?
MC80 is a 4G dual-band LTE router.
Can accept 2.4G and 5G Hz.At the same time,it is a CAT6 router.
Wide coverage and more stable network signal.
| Product Specifications | |
| Hardware Parameters | |
| Chipset | ASR1828 + RTL8192FR + RTL8812FR + RTL8367RB + Si32185 |
| CPU frequency | Dual-Core 1.5Hz(ARM Cortex-A7 + ARM Cortex-R5) |
| Memory | LPDDR2 1Gbit |
| Flash | NAND 1Gbit |
| WIFI |
2T2R Dual Radios: 2.4GHz 802.11b/g/n 300Mbps + 5.8GHz 802.11a/n/ac 867Mbps |
| LTE | DL 300Mbps UL 50Mbps |
|
Device Interfaces |
1 x SIM Card Slot |
| 3 x GE LAN + 1 x GE WAN Ethernet RJ45 | |
| 1 x FXS | |
| 1 x reset button | |
| 1 x WPS button | |
| 1 x Power jack | |
| 1 x Power switch | |
| Battery | 5000mAh |
| WIFI Antenna | 2 x 3dBi internal antenna(2.4G and 5.8G WIFI Antenna Combiner) |
| LTE Antenna | 2 x 5dBi external antenna |
| LTE Support Bands | |
| Support Band |
FDD: B1/B3/B5/B7/B8/B20/B28 TDD: B38/B39/B40/B41 WCDMA: B1/B5/B8 |
| CA List |
B1 + B1/B3/B5/B8/B20/B28 B3 + B3/B5/B7/B8/B20/B28 B7 + B5/B7/B8/B20/B28 B38 + B38 B40 + B40 B41 + B41 |
| WIFI Features | |
|
Standard |
802.11a/b/g/n/ac |
|
11N: 2.4~2.4~835GHz 11AC: 5.150 5.825GHZ |
|
| Korea,Japan,ETSI,FCC channels can be selected | |
| Modulation schemes | OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAMc |
| DSSS = DBPSK, DQPSK, CCK | |
| Transfer Rate |
HT20: up to 144 Mbps HT40: up to 300 Mbps VHT80: up to 867Mbps |
| Software Features | |
|
General |
Mobile main Protocols:3GPP Release 10 Mobile spec Features: APN && Dial Settings NAT support Bridge Mode(Developing) Multi-APNs(Developing) Pin Management Message Management USSD FoTA AT Command Web interface |
|
sim lock band lock cell lock Wireless main Protocols: IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11h(DFS) IEEE 802.11e(WMM) Wireless spec Features: Embedded AP with 4 SSIDs on each Radio Separate authentication for each SSID Multicast to Unicast Auto Channel WEP/WPA/WPA2/WPA3 Security WPS Site Survey Network main Protocols: RFC0768 UDP RFC0791 IP RFC0792 ICMP RFC0793 TCP RFC0826 Ethernet ARP RFC0894 IP over Ethernet RFC0922 Broadcasting Internet Datagrams RFC0950 Internet Standard Subnetting Procedure IEEE802.3 Type IEEE802.1p RFC2516 PPP Over PPPoE RFC1332 PPP Internet Protocol Control Protocol RFC1042 Transmission of IP Datagrams over IEEE 802 Networks IPoE Network spec Features:IPv4/IPv6 dual stack Static/IPoE/PPPoE Connection Type IPv6 Stateless/Stateful Bridge Mode Multi-ETHWAN Base On VLAN(Developing) IGMP proxy and MLD for IPTV DNS Proxy DHCP server NAT,NAPT and ALG Other spec Features: QoS DMZ and Port forwarding (Virtual server) SPI Firewall, Denial of Service protection MAC/IP/Port filter URL filter DDNS Static Route Failover Between ETHWAN and LTE(Developing) SNTP Diagnostics(Ping/Traceroute) Logs and statistics Automatic timing restart |
|
Management Features: WEB GUI Command Tool Telnet For Debug TR-069 Remote Management(Developing) UPNP |
| Regulation Compliance | CE/FCC |
| Safety Regulations | UL |
| Green Standard | RoHS |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
