Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE
Model Number: MT30
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000piece/month
Bands: |
FDD:B1/B3/B7/B8/B20/B28 TDD:B38/B40/B41 WCDMA:B1/B8 |
Data Rate: |
LTE FDD：Max 150Mbps（DL）/ Max 50Mbps（UL）； LTE TDD：Max 130Mbps（DL）/ Min 35Mbps（UL）； WCDMA：Max 21Mbps（DL）/ Max 5.76Mbps（UL） |
MAX Output Power: |
LTE FDD：23dBm±2dB； LTE TDD：23dBm±2dB； WCDMA：24dBm+1dB/-3dB |
Frequency: |
2.4G |
Rate: |
802.11b,g,n |
Wireless Access Technology: |
TD-LTE/FDD/WCDMA |
Bands: |
FDD:B1/B3/B7/B8/B20/B28 TDD:B38/B40/B41 WCDMA:B1/B8 |
Data Rate: |
LTE FDD：Max 150Mbps（DL）/ Max 50Mbps（UL）； LTE TDD：Max 130Mbps（DL）/ Min 35Mbps（UL）； WCDMA：Max 21Mbps（DL）/ Max 5.76Mbps（UL） |
MAX Output Power: |
LTE FDD：23dBm±2dB； LTE TDD：23dBm±2dB； WCDMA：24dBm+1dB/-3dB |
Frequency: |
2.4G |
Rate: |
802.11b,g,n |
Wireless Access Technology: |
TD-LTE/FDD/WCDMA |

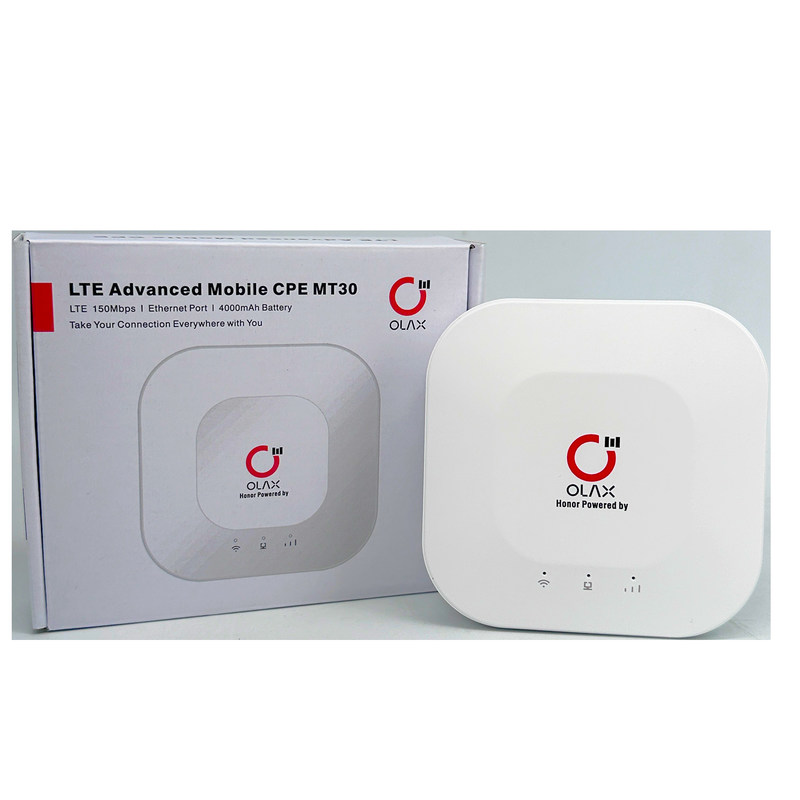

OLAX MT30
4G LTE Mobile WIFI
1. Introduction
MT30 4G Customer Premise Equipment provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data. It converts high-speed TDD/FDD signals to WiFi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the simultaneously.
2. Basic Specifications
| Item | Description |
| USIM Slot | 1.8V/3.0V USIM 4FF |
| Ethernet Port | RJ45×1, LAN, 10/ 100 auto-sensing, auto-MDX |
|
Power Supply |
Input: Universal range 100V~240V AC Output: 12V DC/ 1.5A |
|
Reset Button |
Tactile button. Long press over 10s to restore the factory settings |
|
LED Indicators |
LAN LED ×1 LTE Internet LED ×1 WIFI LED×1 |
| Dimensions | 50mm (H) x 50mm (W) x 1.6mm (D) |
3.4G/3G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
|
Bands(Max) |
FDD:B1/B3/B7/B8/B20/B28 TDD:B38/B40/B41 WCDMA:B1/B8 |
|
Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
|
MAX Output Power |
LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~~3dBi(Internal Antenna) |
4.WiFi Specifications
| Item | Description |
| Standard | IEEE 802.11b/g/n |
|
Channel Bandwidth |
20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| MIMO | DL:2X2 |
|
Peak Rate |
802.11b:11Mbps 802. 11g:54Mbps 802. 11n:300Mbps |
| Modulation | DSSS/CCK,OFDM |
|
Receive Sensitivity |
-85dBm in 802.11b -70dBm in 802. 11g -66dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 14dBm in 802. 11g 13dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 1.5~2dBi |
| Active User | 32 |
5.SW Specifications
| Item | Description |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management | PIN Management, SIM Lock |
|
Network Connection Management |
Auto/Manual |
| LTE Scan Mode | Full band scan , Frequency Lock ,PCI Lock |
| WLAN | Configuration, WPS |
|
VPN |
L2TP PPTP |
|
NAT |
Port forwarding DMZ |
|
Firewall |
IP/MAC/URL Filter Access Control SYN Flood TCP port scan Death of Ping |
| Network Management | TR069 |
| Diagnostics |
TCP Dump Ping Trace route |
|
Statistics |
LTE Status Connection Time System Up Time Device Status DHCP Client List WiFi Station List LTE Status Firewall Status |
|
Maintenance |
Date & Time setting Reboot Restore factory settings Restore / Back up configuration file Firmware upgrade locally/OTA (over the air) |
6.Environmental Specifications
| Item | Description |
|
Operating Temperature |
-20℃ ~ 60℃ |
|
Storage Temperature |
-25℃ ~ 70℃ |
| Operating Humidity | 5% ~ 95% |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
