Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE
Model Number: G5016
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/month
Working Frequency Band: |
LTE B1/3/5/7/8/20/28/34/38/39/40/41 |
Rate: |
5G NR NSA: 2.5 Gbps(DL)/550Mbps(UL) |
External Interface: |
4 LAN Ports, 10M/100M/1000M Adaptive Ports |
USB: |
USB2.0 |
Power Supply: |
DC 12V/2A |
WLAN Parameters: |
Protocol: 802.11a/b/g/n/ac/ax(WiFi6) |
Frequency Band: |
2.4GHz & 5GHz |
Working Frequency Band: |
LTE B1/3/5/7/8/20/28/34/38/39/40/41 |
Rate: |
5G NR NSA: 2.5 Gbps(DL)/550Mbps(UL) |
External Interface: |
4 LAN Ports, 10M/100M/1000M Adaptive Ports |
USB: |
USB2.0 |
Power Supply: |
DC 12V/2A |
WLAN Parameters: |
Protocol: 802.11a/b/g/n/ac/ax(WiFi6) |
Frequency Band: |
2.4GHz & 5GHz |

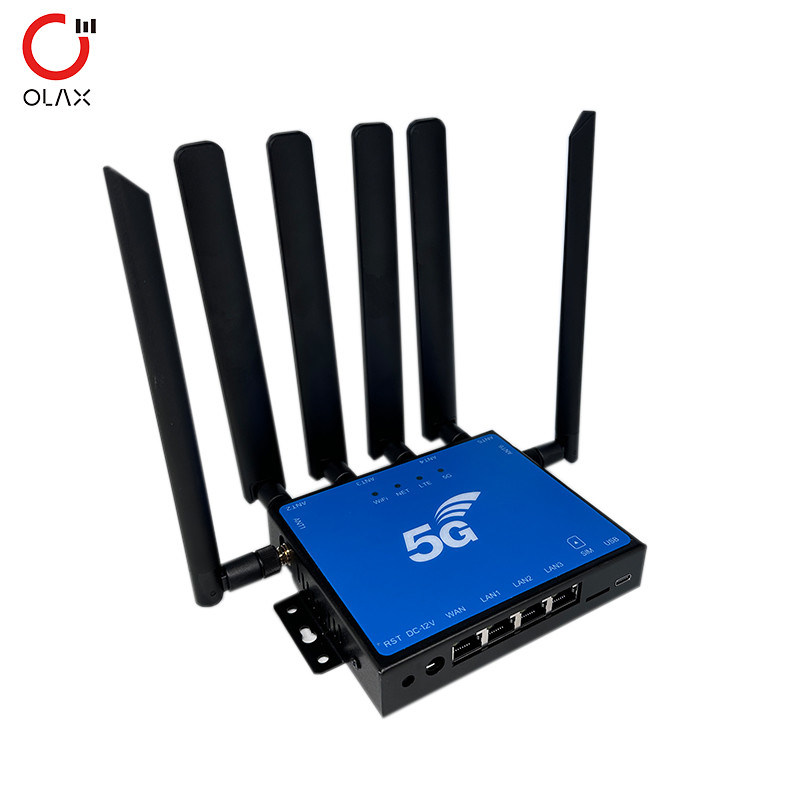

OLAX G5016
5G CPE Router
**5G Power at Your Fingertips:**
Step into the future with the OLAX G5016, a 5G LTE device that brings the latest in wireless technology to your business.
Experience unprecedented speeds and reliability, perfect for the demands of modern industry.
**Factory-Priced for Value:**
Get the best of both worlds with the G5016's combination of cutting-edge 5G technology and factory-direct pricing.
Enjoy high-quality performance without breaking the bank.
**Long-Range Coverage:**
The G5016 is designed to provide extensive coverage, ensuring that your industrial operations stay connected even in large or hard-to-reach areas.
Long-range wifi has never been more accessible.
**Industrial-Grade Build:**
Built to last, the G5016 is crafted with industrial-grade materials to withstand the toughest conditions.
It's a reliable solution for businesses that require durability and longevity.
**Multiple Network Compatibility:**
Stay connected with the G5016's compatibility with various network options, including 5G, 4G, 3G, and Ethernet.
This flexibility ensures that your business can adapt to changing network environments.
**Advanced Security Protocols:**
Protect your business data with the G5016's robust security features, including VPN support and advanced firewalls.
Your sensitive information is safeguarded with the latest in network security technology.
**Scalability for Future Growth:**
The G5016 is designed with scalability in mind, allowing for easy integration with new technologies as your business grows.
Future-proof your connectivity with a device that evolves with you.
**Intuitive Management System:**
Manage your network with ease using the G5016's user-friendly interface.
Monitor, control, and optimize your connections with a simple, efficient system that reduces the need for technical expertise.
Device Spec
| Product Name | CPE |
| Product model | G5016 |
| size | 280X178X183mm |
| weight | 500g |
| colour | black |
| Main chip | SDX55 |
| RF chip | SDR865 |
| Memory | LPDDR4 4Gb |
| storage | NAND 4Gb |
| WiFi chip | QCA6391 |
| Working frequency band | 5G NR NSA: n41/78 |
| 5G NR SA: n1/5/8/28/41/78 | |
| LTE B1/3/5/7/8/20/28/34/38/39/40/41 | |
| rate | 5G NR NSA: 2.5 Gbps(DL)/550Mbps(UL) |
| 5G NR SA: 2.1 Gbps(DL)/450Mbps(UL) | |
| LTE FDD/TDD (Cat. 16) Downlink 1Gbps, uplink 100 Mbps | |
| External interface | 4 LAN ports, 10M/100M/1000M adaptive ports |
| USB 2.0 port for research and development, download, and debugging | |
| USIM card | |
| power supply | DC 12V/2A |
| antenna | External antenna |
| LED | Power light, NET light, LTE light, 5G light, WiFi light |
| button | Reset button |
| WLAN parameters | Protocol: 802.11a/b/g/n/ac/ax(WiFi6) |
| External antenna | |
| Frequency band: 2.4GHz & 5GHz | |
| Supports up to 32 users | |
| function | WIFI security mode:OPEN&WPA-PSK,&WPA2-PSK |
| WIFI hotspot:CPE-2.4G-XXXX CPE-5G-XXXX | |
| WIFI password:1234567890 | |
| Backend address:192.168.100.1 | |
| WEBUI login username and password:admin | |
| firewall:Mac/IP address filter, Port forwarding | |
| APN adaptive | |
| supportIPV4/IPV6/SNTP/DMZ/HTTP | |
| Browser support | IE, Firefox, Google Chrome, Safari, Opera |
| Operating system support | Win 7, Win 8/8.1,Win10,Win11,Linux,MAC OS X 10.7+ |
| Environmental requirements | working temperature : -10°C to 55°C |
| Storage temperature: -20°C to 70°C |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
