Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE
Model Number: G5010
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/month
Power Source: |
DC 12V/2A |
LAN Port: |
1 X 1GE LAN Ports (RJ45) |
5G/LTE: |
NR Sub- 6: N1/N3/N5/N7/N8/N20/N28/N40/N41/N78 LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 |
WIFI: |
2.4 GHz (2x2 MIMO) +5G Band (2x2 MIMO) |
Security Modes: |
WPA/WPA2 PSK, & WPA/WPA2/WPA3 Mixed Mode |
Wi-Fi AP Features: |
802. 11 A/b/g/n/ac/ax/ 2.4GHz+5GHz |
Power Source: |
DC 12V/2A |
LAN Port: |
1 X 1GE LAN Ports (RJ45) |
5G/LTE: |
NR Sub- 6: N1/N3/N5/N7/N8/N20/N28/N40/N41/N78 LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 |
WIFI: |
2.4 GHz (2x2 MIMO) +5G Band (2x2 MIMO) |
Security Modes: |
WPA/WPA2 PSK, & WPA/WPA2/WPA3 Mixed Mode |
Wi-Fi AP Features: |
802. 11 A/b/g/n/ac/ax/ 2.4GHz+5GHz |

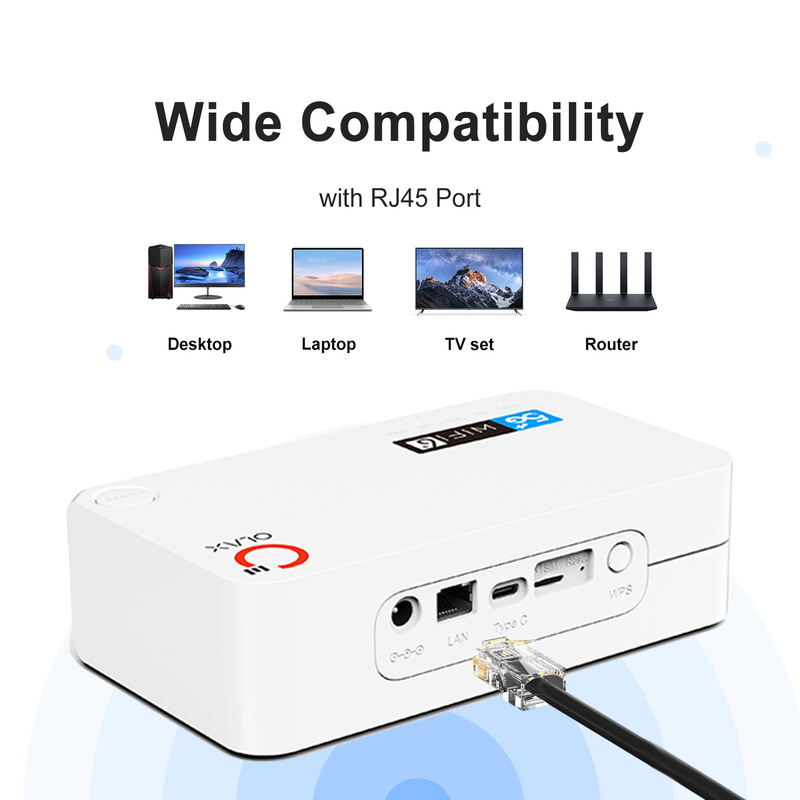

OLAX G5010
5G CPE Router
**Unleash the Power of 5G:**
Experience lightning-fast internet speeds with the OLAX G5010, a cutting-edge 5G LTE CPE that brings you into the era of high-speed wireless connectivity.
**Portable Design:**
Designed with portability in mind, the G5010 is compact and lightweight, making it the perfect travel companion for on-the-go professionals and digital nomads.
**Versatile Compatibility:**
Seamlessly connect multiple devices with ease, supporting a wide range of operating systems and ensuring compatibility with your existing tech ecosystem.
**Advanced Technology:**
Harness the latest in 5G technology with the G5010, featuring advanced chipsets and antennas that optimize signal reception and data transfer rates.
**User-Friendly Interface:**
Enjoy an intuitive user interface that simplifies setup and management, allowing you to get connected in minutes without the hassle.
**Reliable Performance:**
Built with high-quality components, the G5010 delivers consistent and reliable performance, ensuring you stay connected even in challenging environments.
**Energy-Efficient:**
Designed with energy efficiency in mind, the G5010 consumes less power, reducing your carbon footprint and saving you on energy costs.
**Stay Connected Anywhere:**
Whether you're in a bustling city or a remote location, the G5010 ensures you have access to the internet, keeping you connected to what matters most.
**Invest in the Future:**
Elevate your connectivity with the OLAX G5010 Portable 5G LTE CPE – your gateway to a world of possibilities.
**Order Now and Experience the Difference:**
Don't miss out on the opportunity to revolutionize your internet experience.
1. Revision
| Date | Version | Editor | Note |
| 2023/01/ 10 | 1.0 | Walker | First release |
2. Hardware specification
2.1. Interface
| Power button | Press and Release Power on/off |
| Power Source | DC 12V/2A |
| Functional button | Press and start enabling WPS feature |
| LAN port | 1 x 1GE LAN Ports (RJ45) |
| USB port | 1 x Type C |
| LED display |
- Signal strength indicator - 5G network status - Wi-Fi Status - LAN Port status |
| - Mode to indicate Power status or FOTA status | |
| Card s lot | One 4FF (Nano) UICC/USIM card s lot |
| Reset button | One reset button hole |
2.2. RF functions
| Cellular |
5G/LTE |
Qualcomm Snapdragon X55 |
| Standard compliant: 3GPP Release 15(both LTE and 5G) | ||
|
Supported: NR Sub- 6: N1/N3/N5/N7/N8/N20/N28/N40/N41/N78 LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 |
||
|
Modulation: Sub-6 UL: 256QAM, DL: 256QAM LTE DL:256QAM, UL:256QAM |
||
|
MIMO: Sub-6 DL: 4x4, UL:2x2 LTE DL:4X4, UL:1X1 |
| Antenna (both LTE and 5G):4 internal antennas | ||
|
Peak data rate: Sub-6 DL: 4.6Gbps, UL:450Mbps |
||
| Output power class: 22 +/-1 dBm (class 3) | ||
| Wi-Fi | QCA6391 | |
| Standard compliant: IEEE 802. 11 a/b/g/n/ac/ax | ||
| 2.4 GHz (2x2 MIMO) +5G band (2x2 MIMO) | ||
| AX1800 | ||
2.3. Environment
| Temperature | Operating: 0°C to 40°C |
| Storage: -20°C to 60°C | |
| Humidity | Operating Humidity: 5 to 95% RH |
| Storage Humidity: 5 to 95% RH | |
| Non-condensing |
2.4. Physical specification
| Packaging Items | Casing Dimension (WxDxH): 163*90*45mm |
| Weight(Device):393g |
3. Software specification
3.1. Features
| System Features | Web UI/Multiple language supported |
| SMS/Quota/APN/PIN Management | |
| Network Selection | |
| Data Usage / Statistic | |
| DHCP Server | |
| NAT | |
| IP Firewall | |
| Proxy DNS |
| Parental control - Parental controls designed to allow control of Internet access on all devices connected to your home network. | |
| Self-Check - Self-examination when it can’t connect to the network | |
| Port Settings - Port forwarding, including single port, multiple ports or a range of ports | |
| Security - SIM Lock and Secure boot features. | |
|
Firewall - DMZ/MAC Filter/IP Filter/URL Filter/Port Filter Port Settings |
|
| Wi-Fi AP Features | 802. 11 a/b/g/n/ac/ax/ 2.4GHz+5GHz |
| MU-MIMO | |
| Auto Channel Select (ACS) | |
| Hidden SSID | |
| Maximum number of connections:32 | |
| Security Modes : WPA/WPA2 PSK, & WPA/WPA2/WPA3 mixed mode | |
| Access Control : STA blacklist/white list | |
| WPS : Pin and PBC, WPS2.0 |
4. Mechanical & ID designs
4.1. Dimension
Casing Dimension (WxDxH): 163*90*45mm
5. Package
5.1. Accessories
|
Adapter |
12V/2A adapter |
| EU: EU/UK/US plug (M type) | |
| White color | |
| QSG | Quick start guide |
5.2. Packing
|
Box |
Box label |
| Inner paper | |
| Inner box | |
| Color box | |
| Carton | Carton label |
| Carton | |
| Pallet | Pallet label |
| Pallet |
