Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE
Model Number: U80 ULTRA
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/month
Memory: |
ROM/RAM: 128Mb Nor Flash/512Mb RAM |
USIM Slot: |
1.8V/3.0V USIM 2FF |
USB Port: |
Standard USB 2.0×1 For Power Supply |
Europe & Africa Bands: |
FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8 |
Latin America Bands: |
FDD:B2/B4/B5/B7/B28A/B28B WCDMA:B2/B4/B5/ |
Asia Bnads: |
FDD:B1/B3/B5/B8/ TDD:B40 WCDMA:B1/B8 |
MAX Output Power: |
LTE FDD：23dBm±2dB； LTE TDD：23dBm±2dB； WCDMA：24dBm+1dB/-3dB |
Frequency: |
2.4G |
Memory: |
ROM/RAM: 128Mb Nor Flash/512Mb RAM |
USIM Slot: |
1.8V/3.0V USIM 2FF |
USB Port: |
Standard USB 2.0×1 For Power Supply |
Europe & Africa Bands: |
FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8 |
Latin America Bands: |
FDD:B2/B4/B5/B7/B28A/B28B WCDMA:B2/B4/B5/ |
Asia Bnads: |
FDD:B1/B3/B5/B8/ TDD:B40 WCDMA:B1/B8 |
MAX Output Power: |
LTE FDD：23dBm±2dB； LTE TDD：23dBm±2dB； WCDMA：24dBm+1dB/-3dB |
Frequency: |
2.4G |
OLAX U80 Ultra
4G LTE USB Dongle
FEATURES

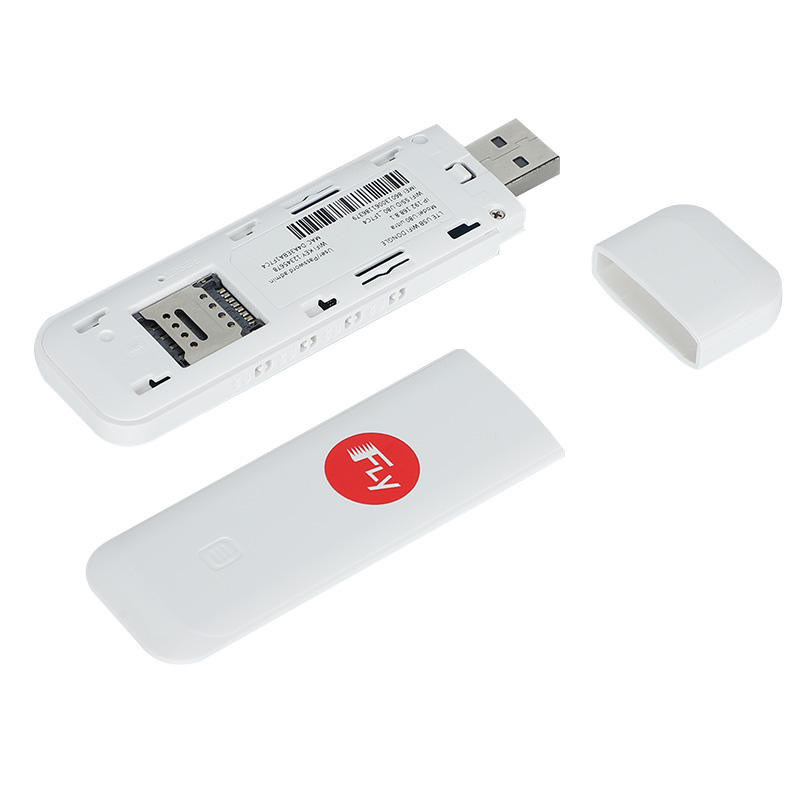

1.How to use: open the back cover and follow the instructions tp inset the SIM card, directly plug into the computer USB interface
Simple and small design, easy for bringing
2.4G wifi dongle, support multiple 4g networks, internect sharing up to 10 users.
3.Fast spped:150mbps downlink speed, enjoy wifi.
1. Introduction
4G LTE USB Wi-Fi Dongle U80 is a new the new USB WIFI Dongle which could
achieve high speed 4G connection. It is not only a modem or a router, it is a real UFI, You can use it in cars via standard usb port,and outside with powerbank via standard usb port.
Internet connection sharing, up to 10 users can access the Wi-Fi network at the same time. no need install software (Wi-Fi Mode),Work with external power supply, no limited working time. it can charger by computer USB port/ Power Bank / Car USB charger/Power supply
U80 ultra can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network. Wireless devices including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.
2. Basic Specifications
| Item | Description |
| CPU | ZX297520V3T |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 128Mb Nor Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| USB Port | Standard USB 2.0×1 for Power supply |
| LED Indicators |
WLAN LED×1(Green) LTE Connection Status LED×2(Red/Blue) |
| Dimensions | 96mm (H) x 34mm (W) x 12mm (D) |
| Weight | About 38g |
3. 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/TDD/WCDMA |
| 3GPP/3GPP2 protocol |
LTE FDD/TDD Rel 9 CAT4 |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
