Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: CE ROHS
Model Number: MF981
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: OLAX Standard Carton :90pcs; 41.5*37.2*30cm; 12kg
Delivery Time: 28-35 Working Days
Payment Terms: T/T
Supply Ability: 10000pcs per day
Max. LAN Data Rate:: |
150Mbps |
With Modem Function:: |
Yes |
Standards And Protocols:: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Application:: |
Outdoor |
Product Name:: |
4G LTE Mobile WIFI |
Battery Capacity:: |
2100MAh |
3G/4G:: |
B1/3/5/7/8/20/38/39/40/41 |
Color: |
Black |
Max. LAN Data Rate:: |
150Mbps |
With Modem Function:: |
Yes |
Standards And Protocols:: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Application:: |
Outdoor |
Product Name:: |
4G LTE Mobile WIFI |
Battery Capacity:: |
2100MAh |
3G/4G:: |
B1/3/5/7/8/20/38/39/40/41 |
Color: |
Black |

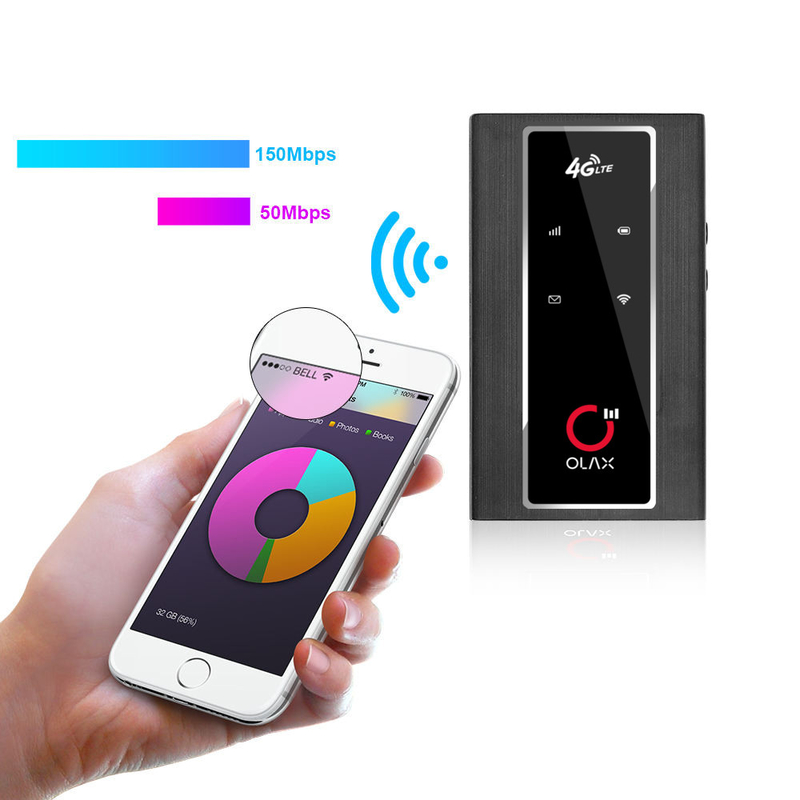

OLAX MF981
4G LTE Mobile wifi
Designed for those who demand high-speed internet on the go, this mini mobile hotspot is perfect for travelers, remote workers, and anyone needing reliable connectivity.
**150Mbps High-Speed Connectivity:**
50Mbps download speeds,
smooth streaming, quick downloads, and efficient online work.
Without the lag when connect internet.
**SIM Card Slot for Easy Connectivity:**
Offering plug-and-play simplicity.
inserting your SIM card so you can enjoy immediate internet access wherever and whenever.
**Portable Design with Antenna Port:**
An antenna port for enhanced signal reception.
Staying connected with weaker signals and maintain a connection.
**Multiple Device Support:**
Up to 10 devices simultaneously, for families, small teams, or anyone who needs to share a wifi connection.
**Built-in WiFi Router:**
Transforms 4G LTE connection into a personal WiFi network.
Ensuring a secure and stable connection for who takes online privacy and security seriously.
**Long-Lasting Battery:**
Long-lasting battery.Can be used for 8-12 hours everyday.
**Advanced Security Features:**
WPA/WPA2 encryption, ensuring your information is safe.
**Intuitive User Interface:**
Manage your device with ease.
Monitor data usage, control connected devices, and customize settings.
**What You Get:**
With SIM card slot, power adapter, user manual, and our commitment to quality and customer satisfaction.
**Stay Internet Connected, Anytime, Anywhere:**
A powerful, portable solution to stay connected and productive anywhere.
1. Introduction
MF981 a new 4G mobile hotspot which could achieve high speed 4G connection.
MF981 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.
2. Basic Specifications
| Item | Description |
| CPU | ZX297520V3E |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 1Gb NAND Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 3FF |
| Interface |
MicroUSB interface Standard USIM interface MicroSD interface |
| Power Button |
Hold on 3s to power on/off Short press to wake up /Light the LED |
| T CARD | Upward compatible to 32 GB |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| LCD Indicators |
Power LED×2(Red & Blue) WLAN LED×1(Blue) SMS LED×1((Blue) LTE Connection Status LED×2(Red/Blue) |
| Battery | 2100Mah lithium Battery |
| Dimensions | 97*58.5*18.9mm |
| Weight | About 100g |
3. 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands |
MF981 (Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41( 120M) WCDMA:B1/B2/B5/B8 MF981 (America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41( 120M) WCDMA:B1/B2/B4/B5/B8 |
| Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power |
LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
4. WiFi Specifications
| Item | Description |
| Standard | IEEE 802.11b/g/n |
|
Channel Bandwidth |
20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps 802. 11g:54Mbps 802. 11n:150Mbps |
| Modulation | DSSS/CCK,OFDM |
|
Receive Sensitivity |
-82dBm in 802.11b -72dBm in 802. 11g -62dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 15dBm in 802. 11g 14dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
| Active User | Max 8 |
5. SW Specifications
| Item | Description |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management |
PIN Management SIM Lock Support PIN/PUK certification |
| Network Connection Management |
Automatic network mode setting Manual network mode setting Automatic dial-up connection Manual dial-up connection Automatic reconnection function Support roaming dialing Manual disconnect WEBUI display information |
| LTE Scan Mode |
Full band scan Frequency Lock PCI Lock |
| WLAN |
Configure Network Name(SSID), Password Support Multi SSID Wi-Fi basic settings Wi-Fi security settings WPS setting Support AP/Station mode Wi-Fi QR code Wi-Fi coverage settings Wi-Fi black and white list function |
| SMS |
Send, Receive, Read, Edit, Delete message Message full processing Concurrency with data services Show the number of stored messages Message status report support |
| Firewall |
IP/MAC/URL Filter UPnP settings DMZ settings |
| Statistics |
LTE Status Connection Time System Up Time Device Status DHCP Client List Wi-Fi Station List LTE Status Firewall Status |
| Maintenance |
Date & Time setting DHCP settings Reboot Restore factory settings Firmware upgrade locally/ FOTA |
| SNTP |
SNTP function SNTP supports daylight saving time |
| Charge | Shut down charging Power on and charge |
6. Environmental Specifications
| Item | Description |
|
Operating Temperature |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
| Operating Humidity | 5% ~ 95% |
| Standby time | 300 hours(LTE connected and WIFI off) |
| Working time | 7-10 hours |
