Product Details
Place of Origin: Guangdong
Brand Name: OLAX
Certification: CE ROHS
Model Number: OLAX MF982
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: OLAX Standard Carton :50pcs; 48*22.5*29.5cm; 9.6kg
Delivery Time: 5-15 Working Days
Payment Terms: T/T
Supply Ability: 10000pcs per day
Max. LAN Data Rate: |
300Mbps |
Standards And Protocols: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Wi-Fi Supported Frequency: |
2.4G |
2.4G Wi-Fi Transmission Rate: |
150 Mbps |
Application: |
Outdoor |
SIM Card Slot: |
1 SIM Card Support |
Battery Capacity: |
3000MAH |
User: |
10User |
Max. LAN Data Rate: |
300Mbps |
Standards And Protocols: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Wi-Fi Supported Frequency: |
2.4G |
2.4G Wi-Fi Transmission Rate: |
150 Mbps |
Application: |
Outdoor |
SIM Card Slot: |
1 SIM Card Support |
Battery Capacity: |
3000MAH |
User: |
10User |

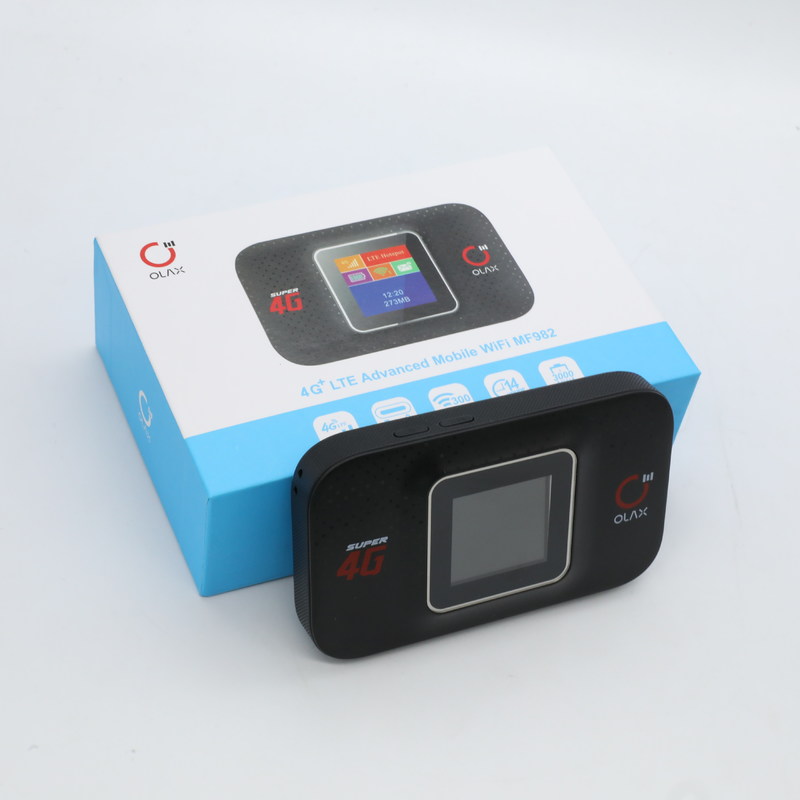

OLAX MF982
4G LTE Mobile WIFI
**Enhanced 4G Performance:**
If you want to play online games or watch TV series anytime, anywhere, you can consider it.
Make you enjoy them anytime and anywhere.
**Unlocked for Global Use:**
Your passport to internet freedom.
Compatible with a wide range of network providers, can adapt to your travel Asia,Africa and Europe plans without compromising on performance.
**Robust Network Sharing:**
Create your own personal WiFi hotspot with the ability to connect multiple devices simultaneously.
Share the high-speed connection with friends, family, or other people.
**Advanced Modem Technology:**
Coming with a modified modem for improved performance.
Enjoy a more stable connection and enhanced data transfer rates.
**User-Friendly Experience:**
An easy-to-navigate interface, setting up your router and managing your network is a breeze, even for someone who fristly use it.
**Portable Design:**
Taking it with you on the go and enjoy the convenience of having a reliable internet source.
**Long-Lasting Battery:**
Long-lasting battery.Long use time
Ensures that your internet access won't be cut short.
**Secure and Private Browsing:**
Protect your data with security features.
**Discover the Power of the OLAX MF982 Today:**
Upgrade your mobile internet experience.
1. Introduction
MF982 a new 4G mobile hotspot which could achieve high speed 4G connection.
MF982 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.
2. Basic Specifications
| Item | Description |
| CPU | ZX297520V3E |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 1Gb NAND Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 3FF |
| Interface |
MicroUSB interface Standard USIM interface MicroSD interface |
| Power Button |
Hold on 3s to power on/off Short press to wake up /Light the LED |
| T CARD | Upward compatible to 32 GB |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| LCD Indicators |
Power LED×2(Red & Blue) WLAN LED×1(Blue) SMS LED×1((Blue) LTE Connection Status LED×2(Red/Blue) |
| Battery | 3000Mah lithium Battery |
| Dimensions | 97*58.5*18.9mm |
| Weight | About 100g |
3. 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands |
MF982(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41(120M) WCDMA:B1/B2/B5/B8 MF982-A(America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41(120M) WCDMA:B1/B2/B4/B5/B8 |
| Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power |
LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
4. WiFi Specifications
| Item | Description |
| Standard | IEEE 802.11b/g/n |
|
Channel Bandwidth |
20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps 802. 11g:54Mbps 802. 11n:150Mbps |
| Modulation | DSSS/CCK,OFDM |
|
Receive Sensitivity |
-82dBm in 802.11b -72dBm in 802. 11g -62dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 15dBm in 802. 11g 14dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
| Active User | Max 8 |
5. SW Specifications
| Item | Description |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management |
PIN Management SIM Lock Support PIN/PUK certification |
| Network Connection Management |
Automatic network mode setting Manual network mode setting Automatic dial-up connection Manual dial-up connection Automatic reconnection function Support roaming dialing Manual disconnect WEBUI display information |
| LTE Scan Mode |
Full band scan Frequency Lock PCI Lock |
| WLAN |
Configure Network Name(SSID), Password Support Multi SSID Wi-Fi basic settings Wi-Fi security settings WPS setting Support AP/Station mode Wi-Fi QR code Wi-Fi coverage settings Wi-Fi black and white list function |
| SMS |
Send, Receive, Read, Edit, Delete message Message full processing Concurrency with data services Show the number of stored messages Message status report support |
| Firewall |
IP/MAC/URL Filter UPnP settings DMZ settings |
| Statistics |
LTE Status Connection Time System Up Time Device Status DHCP Client List Wi-Fi Station List LTE Status Firewall Status |
| Maintenance |
Date & Time setting DHCP settings Reboot Restore factory settings Firmware upgrade locally/ FOTA |
| SNTP |
SNTP function SNTP supports daylight saving time |
| Charge | Shut down charging Power on and charge |
6. Environmental Specifications
| Item | Description |
|
Operating Temperature |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
| Operating Humidity | 5% ~ 95% |
| Standby time | 300 hours(LTE connected and WIFI off) |
| Working time | 6~8 hours |
